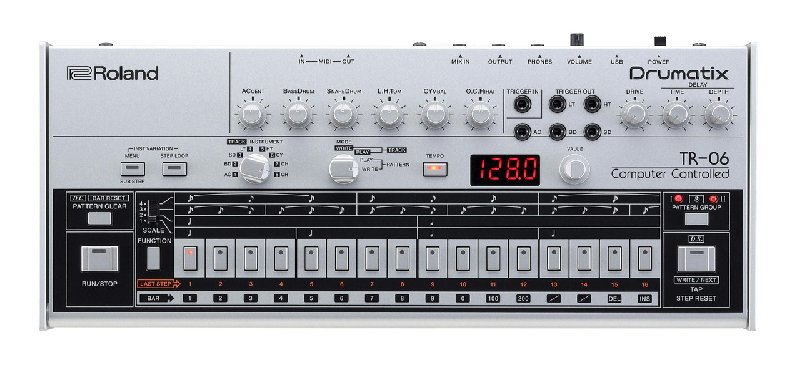

What power sources does the TR-06 use?
It can be powered via USB bus power from a computer or by using four AA batteries, making it highly portable.
What connectivity options does it have?
It features a 1/8" TRS mix input, a 1/8" TRS main output, a 1/8" headphone output, MIDI In/Out via USB, five 1/8" trigger outputs (for BD, SD, LT, HT, AC), and one 1/8" trigger input for modular integration.
How many patterns can it store?
It has memory for 128 patterns, organised as 16 patterns across 8 banks.
What built-in effects are included?
Effects include a compressor, delay effects (delay, pan delay, tape-echo, reverb, flanger, side band filter), and drive effects (saturator, bit crusher, distortion, LPF/HPF).
Is it compatible with modular synthesiser systems?
Yes, it has one trigger input and five trigger outputs specifically designed for simple integration with modular or other external gear.
What are the main sequencer features?
The 32-step sequencer includes functions like step-loop, substep, flam, intro/fill-in, and probability controls (per-step, substep, and master probability) for complex, evolving rhythms.
What instruments or sounds does it include?
It models the seven classic TR-606 instruments: bass drum, snare drum, low tom, hi tom, cymbal, open hi-hat, and closed hi-hat.
